We have a variety of machines to best serve the individual needs of our customers. We are proud to offer the following technology for our clients:
Sinker EDM Machines
(1) Mitsubishi Sinker EA 28, Table Size (X,Y,Z) 60in x 35in x 30.0in, Max Table Weight: 4400lbs, C-axis rotation, 3R system MacroStandard spindle.
(2) Mitsubishi Sinker EA12V, Table Size (X,Y,Z) 36.5in X 27in X 19in, Max Table Weight: 1550lbs, 3R system MacroCombi Spindle (uses both MacroStandard or MarcoJunior), C-axis rotation, Paired with 3R Workmaster (114) position robot.
(1) Mitsubishi Sinker EA12PS, Table Size (X,Y,Z) 36.5in X 27in X 19in, Max Table Weight: 1550lbs, 3R system Macro Spindle, C-axis rotation, (24) position tool changer.
Machined electrodes are burned into material to produce the reverse shape of the trode. This can be done in any electrically conductive materials. Common trode material can be copper or graphite. +/- .0002” typical tolerances.
EDM maximum size capacity 700 mm by 500 mm with maximum weight of 700 kg.
GRAPHITE MACHINE
(1) Hwacheon HI-M G1, Table: 29.53in x 24.41, Travel (X,Y,Z) 29.53in x 23.62in x 13.78in, Max Table Weight: 882lbs, 24,000 rpm spindle, (16) Position Tool changer, Blum laser tool touch off, Paired with 3R Workmaster (114) position robot.
Machines graphite to desired shape. +/- .0002” typical tolerances. Programmed in Mastercam
Vertical CNC machines
(1) Hurco VM20i Table: 46 x 20, Travel: (X,Y,Z) 40 x 20 x 20, Max Table Weight: 2000 lbs,10,000 rpm Spindle, Winmax Control, (20) Position Tool changer.
Machine use for various components. +/- .001” typical tolerances. Programmed in Mastercam.
(1) Hurco VM42i Table: 50 x 24 Travel: (X,Y,Z) 42 x 24 x 20 Max Table Weight: 3000 lbs, 12,000 rpm spindle, Winmax Control, (30) Position Tool changer.
Machine used for finish milling core/cavity, various components, +/- .0003” typical tolerances. Programmed in Mastercam.
(2) Hurco VMX30i Table: 40 x 20 Travel: (X,Y,Z) 30 x 20 x 24 Max Table Weight: 3000 lbs, 10,000 rpm spindle, Winmax Control, (30) Position Tool changer.
Machine used for finish milling core/cavity, various components, +/- .0003” typical tolerances. Programmed in Mastercam.
(1) Kitamura 4xif, Table: 43.3 x 20.6, Travel: (X,Y,Z) 40 x 20 x 20, Max Table Weight: 3000 lbs, 20,000 rpm Spindle, Fanuc Control, (40) Position Tool change.
Machine used for finish milling core/cavity. Hard Milling +/- .0002” typical tolerances. Programmed in Mastercam.

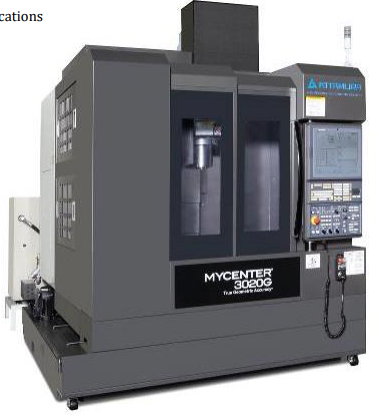

(1) Kitamura 3020G, Table: 19.7 x 33.9, Travel: (X,Y,Z) 30 x 20.1 x 20.1, Max Table Weight: 1,100 lbs, 20,000 rpm Spindle, Fanuc Control, (30) Position Tool change.
Machine used for finish milling core/cavity. Hard Milling +/- .0002” typical tolerances. Programmed in Masterc
(2) Milltronics VM20, Table: 44.5 x 20. Travel: (X,Y,Z) 40 x 20 x 26 Max Table Weight: 2000 lbs,15,000 rpm spindle, 9200 Control, (24) Position Tool changer. Used for plate work, rough cavity/core blocks.
Machine use for various components. +/- .001” typical tolerances. Programmed in Mastercam.
HORIZONTAL CNC MACHINES
(1) Kitamura MX500ig, Table: 19.7 x 19.7, Travel: (X,Y,Z) 34.3 x 31.5 x 36.6, Max Table Weight: 1780 lbs, 20,000 rpm spindle, Arumatik Control, (50) Position Tool changer.
Machine used for finish milling core/cavity, various components, hard milling, +/- .0002” typical tolerances. Programmed in Mastercam.
Machining maximum size capacity for 24” x 45” x 16”
CNC BRidge mills
(1) Smart SW216, Table: 78.74.0 x 55.12 Travel: (X,Y,Z) 88.58 x 62.99 x 30.71 Max Table Weight: 15,000 lbs,6,000 rpm spindle
Machine use for various components. +/- .0002” typical tolerances. Programmed in Mastercam
(1) Milltronics BR60, Table: 100.0 x 60. Travel: (X,Y,Z) 100 x 60 x 29 Max Table Weight: 5000 lbs,12,000 rpm spindle, Used for plate work, general machining.
Machine use for various components. +/- .001” typical tolerances. Programmed in Mastercam
KTC EDB-435 EDM Hole Driller
28.34" x 22.83" x 10.62" (W x D x H) max work piece
16.4" x 14.17" stroke
10.62" Z axis stroke
12.99" electrode guide travel
.08 mm-4.0 mm usable electrode guide diameter
200 mm-400 mm usable electrode length
Capable of drilling through any conductive material (carbide, hardened steel, iron,copper, brass, etc.)
Water dielectric fluid
Capability of multiple work offsets
NC files capable of being made through AutoCad
(DWG/DXF) files
Mitsubishi Wire EDM
(1) MV2400R, Table: 41.3 x 32.3 Travel: (X,Y,Z) 23.6 x 15.7 x 12.2 Max Table Weight: 3,300 lbs, Capability of unsubmerged or submerged operation
(1) MV1200R, Table: 32. x 28. Travel: (X,Y,Z) 16. x 12. x 9. Max Table Weight: 1,100 lbs, Capability of unsubmerged or submerged operation
Okuma Genos L3000MY-e CNC Lathe
20.47” dia swing over bed
13.38” max turn diameter
17.71” Z travel
3,800 rpm A2-8 main spindle nose
10” 3 jaw hollow chuck and cylinder
3.15” main bore diameter
12 position 0.3 sec NC BMT turret
M spindle 6,000 rpm
Tailstock - hydraulic quill
1.0 inch straight tooling
OD 1.5” dia tooling
984 ipm rapid traverse
Manual touch tool setter
